Flexible, proven and easy to handle – the SBS series for miter cuts up to 60°
cast-iron saw frame, one-piece construction
space-saving work process for miter cuts – the operator moves the saw frame, not the material
hydraulic cylinder for infinitely variable saw frame feed
2 cutting speeds for optimum machining results and low saw blade wear
pressure gauge indicates saw blade tension
vise with quick-action clamping and linear stop
rigid saw blade guides, adjustable, with dual ball-bearings
coolant system and solid base are included

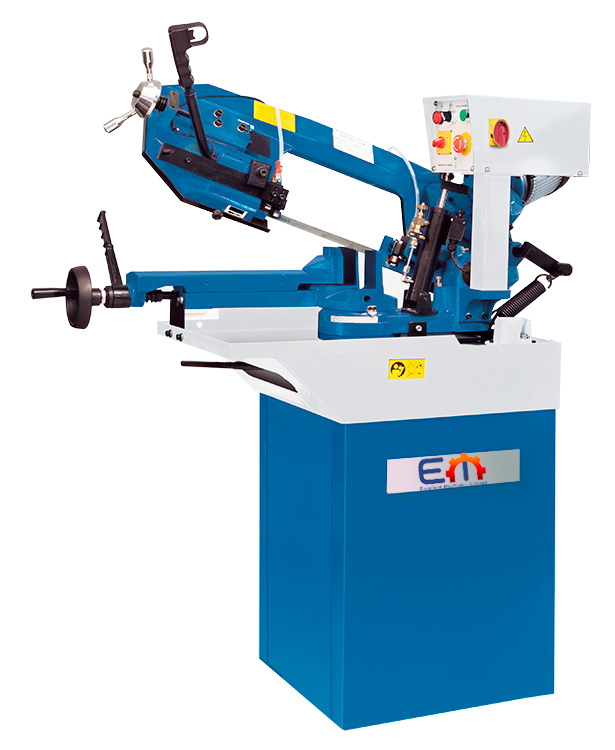

| SBS 210 – Horizontal Miter Band Saw | |
| cutting capacity 90° (round) | 170 mm |
| cutting capacity 90° (square) | 170 mm |
| cutting capacity 90° (flat) | 210×140 mm |
| cutting capacity 45° (round) | 120 mm |
| cutting capacity 45° (square) | 110 mm |
| cutting capacity 60° (round) | 70 mm |
| cutting capacity 60° (square) | 60 mm |
| cutting speed | 40 / 80 m/min |
| drive capacity | |
| motor rating main drive | 0,9 kW |
| main drive, continuous load | 0,55 kW |
| supply voltage | 400 V |
| overall dimensions | 1260x540x900 mm |
| weight | 160 kg |
,
