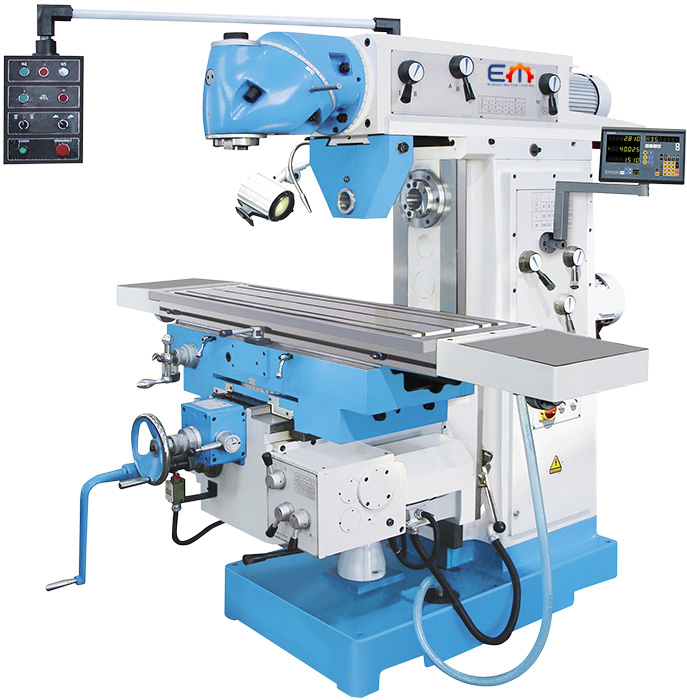

UWF 4 – Universal Milling Machine

UWF 4 – Universal Milling Machine

UWF 4 - Universal Milling Machine

Feature:

Superior price/performance ratio, for single part production and training purposes

with Huron cutter head system
large setup table 1320 x 360 mm
X axis travel 1000 mm
vertical and horizontal spindles feature their own powerful drives
milling table swivels in X axis
extensive standard equipment
machine frame features heavy ribbing and torsional rigidity
wide. rigid, hardened guideways ensure maximum stability and constant accuracy
large, wide, supported table rotates ± 35°
the vertical cutter head swivels (manually) on 2 levels allowing virtually any angle setting
large spindle taper ST 50 ensures high rigidity even when using very large tools
all gears and shafts are hardened and ground
all electric components are made by leading manufacturers
vertical and horizontal spindles have their own drives, resulting in low-loss performance and shorter rejig times
automatic feeds and rapid feeds on all 3 axes
all hand-wheels (including for X axis) are placed at the front within the operator’s reach
the control panel is mounted on a swivel boom for optimum positioning
central lubrication for low-maintenance operation

UWF 4 – Universal Milling Machine
working area
travel X-axis1000 mm
travel Y-axis280 – 290 mm
travel Z-axis325 mm
table dimensions1320×360 mm
table load capacity (max.)250 kg
number of T-slots3 Pieces
T-slots, width14 mm
T-slots, spacing95 mm
feed
rapid feed X-axis1290 mm/min
rapid feed Y-axis1205 mm/min
rapid feed Z-axis513 mm/min
feed speed X-axis22 – 420 mm/min
feed speed Y-axis22 – 393 mm/min
feed speed Z-axis10 – 168 mm/min
vertical milling head
spindle speed (vertical)(12) 60 – 1750 rpm
spindle mount (vertical)SK 50
throat230 – 730 mm
spindle nose-to-table surface distance170 – 570 mm
milling head swivel range360 °
horizontal milling head
spindle speed (horizontal)(12) 58 – 1800 rpm
spindle mount (horizontal)SK 50
spindle axis-to-table surface distance0 – 400 mm
drive capacity
motor rating horizontal spindle4 kW
motor rating vertical spindle4 kW
motor rating feed1,1 kW
motor rating coolant pump0,09 kW
measures and weights
overall dimensions1980x2020x1900 mm
weight2200 kg

,
