FEATURE:
High Productivity, Easy Handling
-the ideal option for series production
pneumtic collet chuck, up to 42 mm
rigid construction
powerful motor, 5.5 kW
infinitely adjustable speed across two gear steps
fine speed adjustments from 120 to 2000 rpm
a powerful drive motor (5.5 kW) provides plenty of power at all speed levels
automatic tool turret change-over and single-lever operation against adjustable end stops allow short machining times and maximum repeatability
when using bar feed system and cut-off attachment, auxiliary time is reduced to a minimum

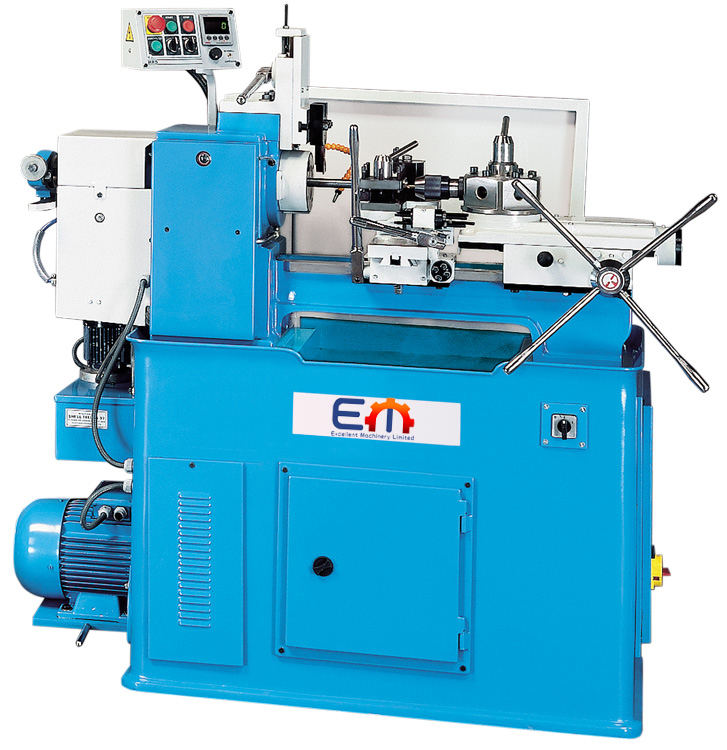

| Turret Lathe | HRD 42 PF | HRD 60 PF |
| working area | ||
| workpiece, round (max.) | 42 mm | 60 mm |
| workpiece, hexagonal (max.) | 36 mm | 51 mm |
| workpiece, square (max.) | 30 mm | 41 mm |
| travel turret slide | 150 mm | 150 mm |
| travel cut-off slide | 35 mm | 35 mm |
| travel axial slide | 90 mm | 90 mm |
| travel, cross slide | 100 mm | 100 mm |
| headstock | ||
| spindle speed | (2) 120 – 2000 rpm | (2) 120 – 2000 rpm |
| collet chuck mount diameter | 30, 42 mm / 1,2″, 1,65″ | 42, 60 mm / 1,65″, 2,36″ |
| drive capacity | ||
| motor rating main drive | 5,5 kW | 5,5 kW |
| motor rating coolant pump | 0,1 kW | 0,1 kW |
| supply voltage | as required | as required |
| measures and weights | ||
| overall dimensions | 1600x800x1600 mm | 1600x800x1600 mm |
| weight with bar feeder | 880 kg | 910 kg |
,
