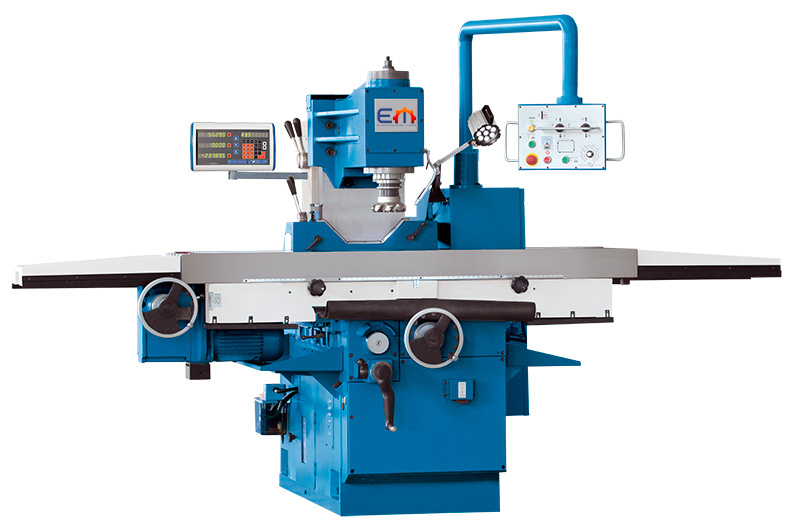

UBF 1250 - Bed-Type Milling Machine


Universal high-performance machine for vertical and horizontal machining of large workpieces

Bed-type milling machine featuring a rigid design made of premium FC30 cast-iron
Machine column moves in Z direction, allowing high table loads
All guides are hardened and ground
Long table travel (1250 mm) and large table setup area (1800 x 400 mm) allow machining of large workpieces
All gears of the 8-step main spindle drive are hardened and ground for maximum tool life and quiet operation
Ideally stepped spindle speed range from 95 to 1200 rpm
Wide table and column box-ways ensure maximum rigidity and precision even at high table loads
Infinitely variable vertical, linear and cross feeds
Electric controls are positioned ergonomically within reach on a long arm
Central lubrication for simplified maintenance

UBF 1250 – Bed-Type Milling Machine
working area
travel X-axis1250 mm
travel Y-axis540 mm
travel Z-axis470 mm
table set up area1800×400 mm
table load capacity1000 kg
number of T-slots4 Pieces
T-slots, width18 mm
T-slots, spacing80 mm
rapid feed X-axis1200 mm/min
rapid feed Y-axis1200 mm/min
rapid feed Z-axis1200 mm/min
feed speed X-axis16 – 1200 mm/min
feed speed Y-axis16 – 1200 mm/min
vertical milling head
speed range(8) 95 – 1200 rpm
spindle mountISO 50
throat570 mm
vertical spindle-to-table surface distance100 – 570 mm
drive capacity
motor rating main drive7,5 kW
motor rating feed1,5 kW
motor rating coolant pump0,12 kW
measures and weights
overall dimensions3000x2535x2050 mm
weight3200 kg
