Feature:
Servo drive X, Y, Z, and extra large workspace (X 1300 mm and Y 650 mm)
total price including 3-axis position indicator assembled
extra large work table and large travel ranges on all axes
sturdy and torsionally rigid construction
universal swivel head – cutter can be moved to any spatial angle
infinitely variable feed speed and rapid feed with servo motor and axis control on all 3 axes
preloaded ball screw – zero-backlash – preloaded for easy and precise feeds
simultaneous axis movement
Turcite-B coated guides
dovetail guideways on X-axis
square guides on Y and Z axes
hardened and ground gears, nitrated
swiveling control panel, fully equipped with all operating elements
automatic lubricant supply
spindle brakes
equipment according to CE

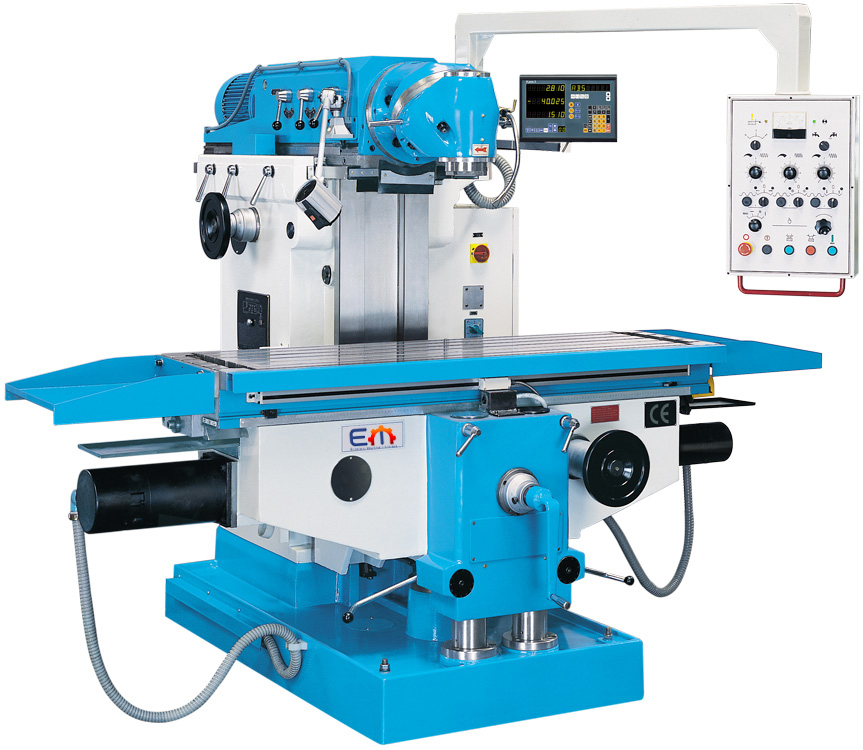

| UWF 12 B – Universal Milling Machine | |
| working area | |
| travel X-axis | 1300 mm |
| travel Y-axis | 650 mm |
| travel Z-axis | 450 mm |
| table set up area | 1635×500 mm |
| table load capacity (max.) | 1800 kg |
| number of T-slots | 5 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 80 mm |
| feed | |
| rapid feed X-axis | 2200 mm/min |
| rapid feed Y-axis | 2200 mm/min |
| rapid feed Z-axis | 1100 mm/min |
| feed speed X-axis | 10 – 1000 mm/min |
| feed speed Y-axis | 10 – 1000 mm/min |
| feed speed Z-axis | 5 – 500 mm/min |
| vertical milling head | |
| spindle speed (vertical) | (27) 30 – 2050 rpm |
| spindle mount (vertical) | SK 50 |
| throat | 60 – 760 mm |
| spindle axis-to-table surface distance | 80 – 530 mm |
| milling head swivel range | 360 ° |
| drive capacity | |
| motor rating main drive | 7,5 kW |
| axes drive for each axis | DC Servo |
| measures and weights | |
| overall dimensions | 2140x2621x1940 mm |
| weight | 3500 kg |
,
,
