Highly reliable Horizontal Band Saws with easy miter adjustment
infinitely variable hydraulic saw advance ensures optimum cutting results and minimized tool wear
automatic shut-off upon completion of saw process
band break sensor activates automatic shut-off upon band break
helical gears, designed for continuous operation with above average life time and low maintenance
infinitely variable cutting speed from 20 to 100 m/min
coolant system
rigid guide arms

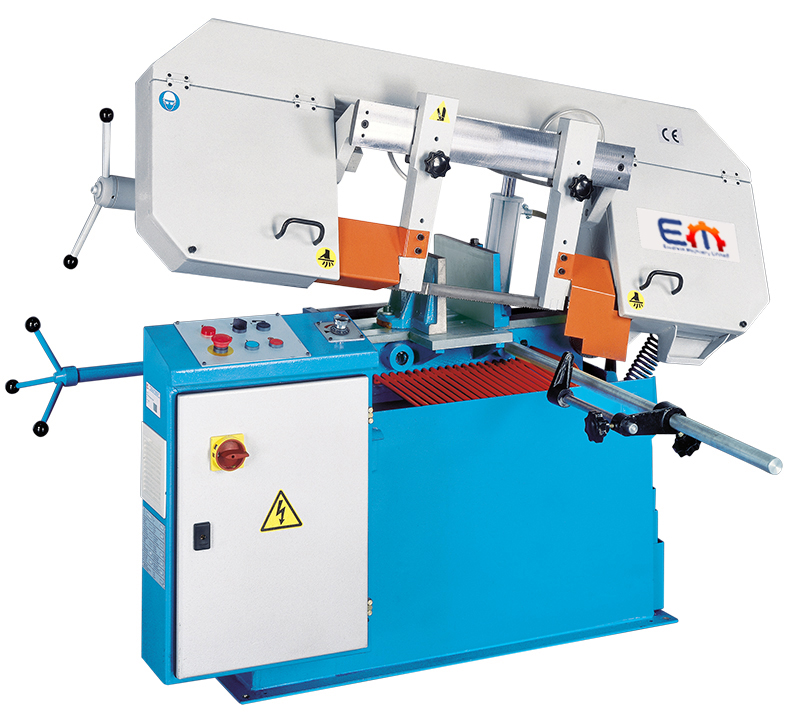

| HB 280 B – Semi-Automatic Band saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 350×200 mm |
| cutting capacity 90° (round) | 280 mm |
| cutting capacity 90° (square) | 280 mm |
| cutting capacity 45° (flat) | 260×320 mm |
| cutting capacity 45° (round) | 240 mm |
| cutting capacity 45° (square) | 210 mm |
| cutting speed | stufenlos / infinitely variable 20-100 m/min |
| drive capacity | |
| motor rating main drive | 1,5 kW |
| motor rating coolant pump | 0,12 kW |
| supply voltage | 400 V |
| measures and weights | |
| belt dimensions | 27×0,9×3400 mm |
| overall dimensions | 1800x850x1000 mm |
| weight | 530 kg |
,
