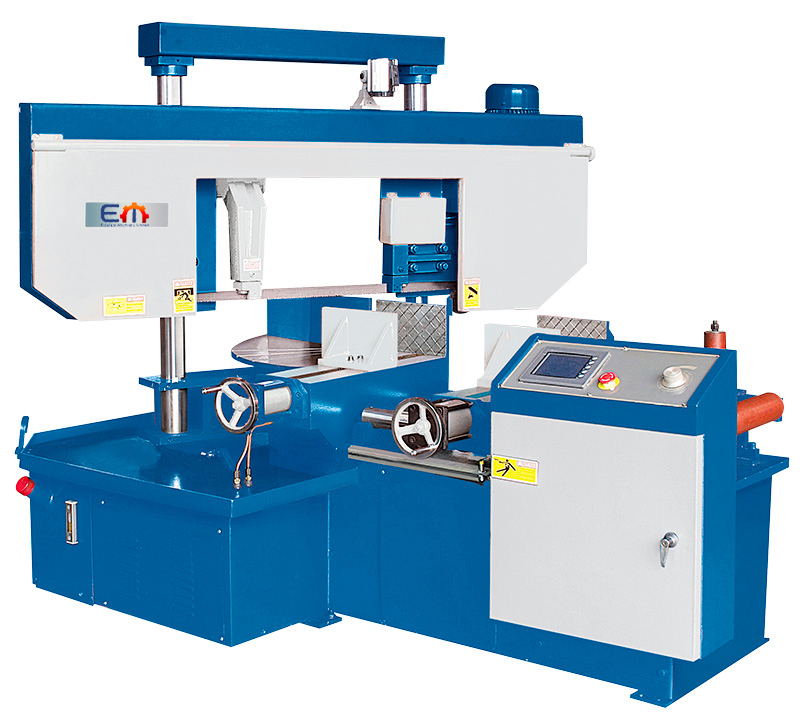

Automatic Band Saw with programmable cutting angle
Cutting angle settings 90°-60°-45°
with touch-screen monitor
automatic workpiece feed
torsion-resistant dual-column construction
hydraulic saw frame feed via chrome-plated column guide
slightly inclined saw frame improves cutting performance and increases the service-life
dual hydraulic workpiece clamping
infinitely variable cutting speed
automatic angle positioning in 1° increments from 0° to 45°
precise and stable saw band guides ensure high angular accuracy
automatic band breakage control
Band speed indicator on the display
| ABS 300 NC – Miter Band Saw, fully automated | |
| cutting capacities | |
| Schneidleistung 0° (rechteck) | 360×300 mm |
| Schneidleistung 0° (rund) | 300 mm |
| Schneidleistung 0° (quadrat) | 300 mm |
| cutting capacity 30° (flat) | 300×300 mm |
| cutting capacity 30° (square) | 300 mm |
| cutting capacity 30° (round) | 300 mm |
| cutting capacity 45° (flat) | 240×300 mm |
| cutting capacity 45° (square) | 240 mm |
| cutting capacity 45° (round) | 240 mm |
| working length | 400 mm |
| cutting speed | 20 – 90 m/min |
| drive capacity | |
| motor rating main drive | 3 kW |
| motor rating hydraulic pump | 0,75 kW |
| motor rating coolant pump | 0,45 kW |
| measures and weights | |
| belt dimensions | 4430x34x1,1 mm |
| overall dimensions | 2200x2000x1700 mm |
| weight | 1900 kg |
,
