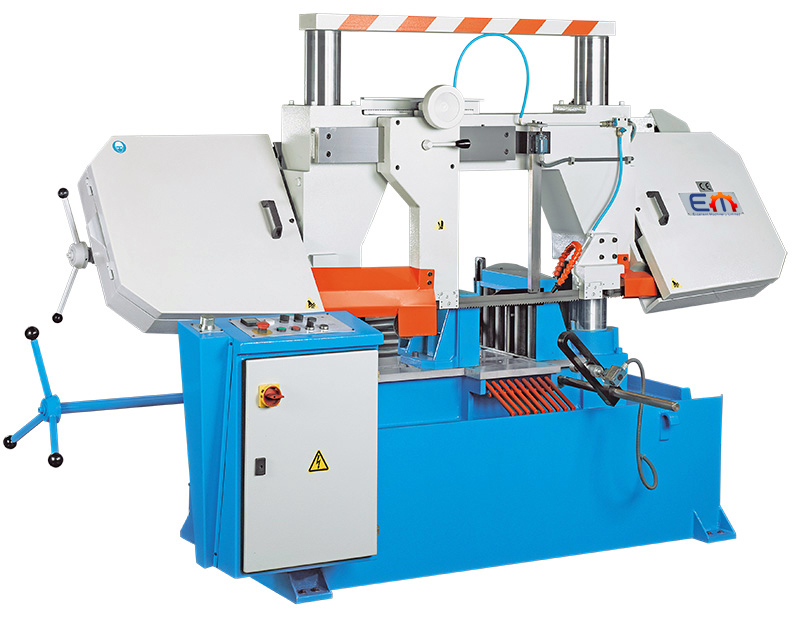

ABS 350 B – Fully Automated Band Saw

ABS 350 B – Fully Automated Band Saw

ABS 350 B - Fully Automated Band Saw

Fully automatic high-performance band saw with twin column guide system


main drive with 2.2 kW provides for sufficient power reserves
rigid dual-column guide for parallel cuts
torsion-resistant weldment
helical gears, designed for continuous operation with above average life time and low maintenance
parts counter
infinitely variable cutting speed from 20 to 100 mm/min for optimum cutting results
band breakage control
carbide saw-band guides
coolant system with 3 nozzles
feed roller table and linear stop are standard equipment

ABS 350 B – Fully Automated Band Saw
cutting capacities
cutting capacity 90° (flat)370×350 mm
cutting capacity 90° (round)350 mm
cutting capacity 90° (square)350 mm
stop length500 mm
cutting speed20-100 stufenlos / infinitely variable m/min
working area
roller guide length1000 mm
drive capacity
motor rating main drive2,2 kW
supply voltage400 V
motor rating hydraulic pump0,75 kW
motor rating feed0,25 kW
motor rating coolant pump0,12 kW
measures and weights
overall dimensions2700x1100x1650 mm
weight1400 kg



,

,
