Universal Skill Package for the Shop Floor – Drilling, Thread cutting, and Milling

Drilling and Milling – a true added value for a low price
compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
quiet operation with oil-bath lubricated gears for long tool life and durability
the milling machine’s high-quality spindle bearing can withstand higher loads for the long term
manual drill feed can be switched to high-precision feed via a hand-wheel
adjustable height of gear head and table
table guides are adjustable with high precision via taper gibs
gear head swivels to both sides
cutter mounts are secured by an M16 drawbar
tapping feature
integrated coolant system

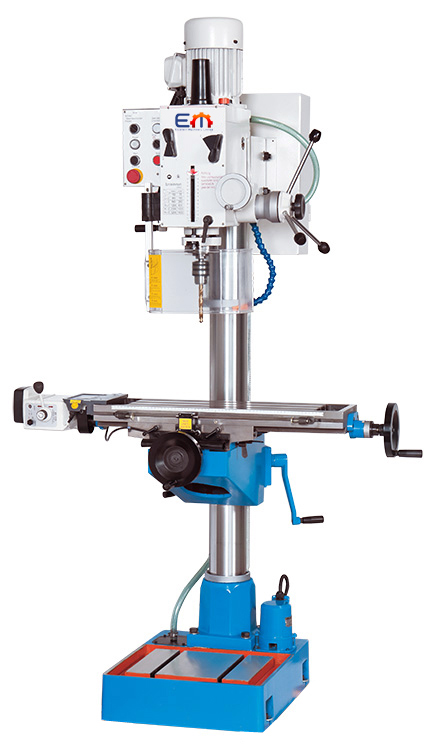

SBF 32 TV 1000 – Column Drill Press with Milling Function
drilling capacity32 mm
tapping capacity, steel(ST 37) M16
working area
travel X-axis370 mm
travel Y-axis190 mm
travel Z1-axis260 mm
travel Z2-axis260 mm
table set up area710×210 mm
table load capacity (max.)100 kg
T-slot table (qty x width x spacing)3x14x50 mm
T-slot foot (qty x width x spacing)2x14x200 mm
quill stroke120 mm
spindle nose-to-table distance (max.)510 mm
spindle nose-to-foot distance1180 mm
throat270 mm
column diameter115 mm
head swivel range± 45 °
feed
work feed0 – 420 mm/min
rapid feed600 mm/min
headstock
speed range(12) 75 – 3200 rpm
spindle mountMK 4
drive capacity
motor rating main drive1,1 kW
motor rating coolant pump0,04 kW
measures and weights
overall dimensions880x750x1700 mm
weight340 kg

,
