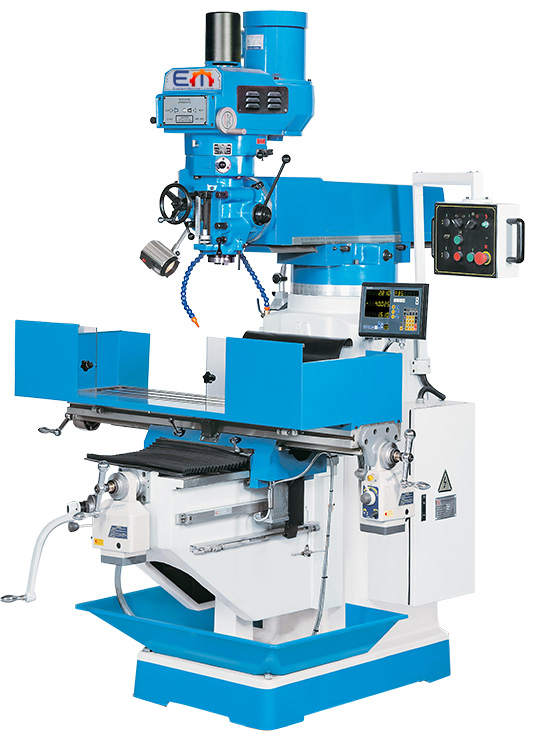

| MF 5 VP – Multipurpose Milling Machine | |
| working area | |
| travel X-axis | 800 mm |
| travel Y-axis | 390 mm |
| travel Z-axis | 380 mm |
| table set up area | 1370×250 mm |
| table load capacity (max.) | 350 kg |
| feed | |
| quill feeds | (3) 0,04; 0,08; 0,15 mm/R |
| vertical milling head | |
| speed range, infinitely variable | 70 – 3600 rpm |
| spindle mount | ISO 40 |
| quill stroke | 127 mm |
| drive capacity | |
| motor rating main drive | 3,75 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 2540x2156x2235 mm |
| weight | 1590 kg |
,
