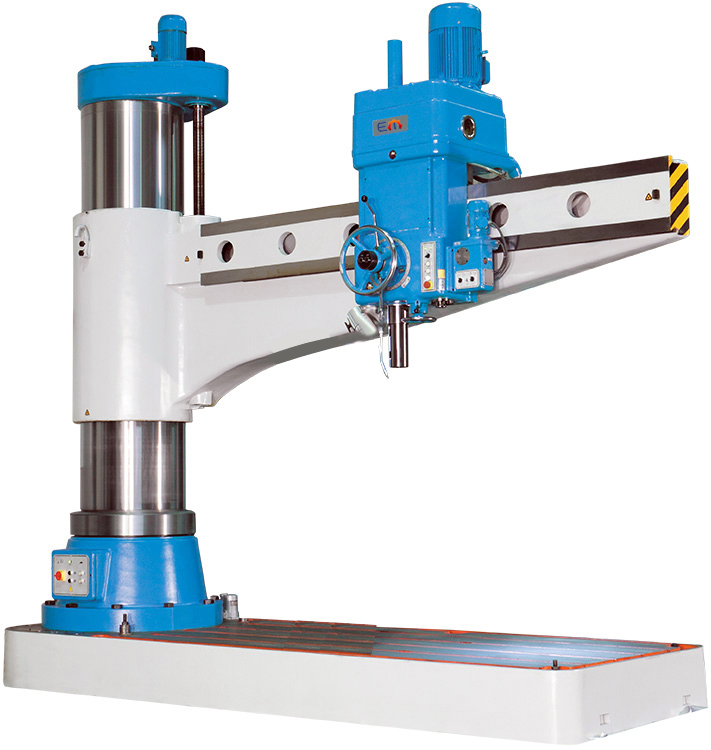

EM Radial Drill Presses – perfect in every detail, powerful, rigid and easy to handle

Base, column, boom and gear head are made of premium high-quality cast
major design features include a large column and a highly torsion-resistant boom
boom height adjustment via a powerful motorized drive and vertical spindle
the boom lifting gears run in an oil-bath for maximum reliability and minimum wear
advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
swivel axis and travel axis feature extremely smooth operation to make the operator’s everyday production work easier
the gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation
all gear parts are lubricated reliably via oil pump
the main spindle runs on precision bearings and features an automatic spindle brake
Proven performance, quality and cost-effectiveness
quill teeth are precision-ground for a smooth feed and minimum wear
the drill head moves on hardened and ground guideways
all models feature adjustable overload clutches in the feeds
adjustable boring depth stop with large, easy to read scale and Nonius
all operator controls are placed within reach for convenient and practical handling and quick learning
powerful coolant system with coolant reservoir integrated into the machine foot
a large throat and high boring capacities are supported by a very rigid structural design, without compromising the ease of handling and smoothness of operation
the drill head features a rigid design with motorized or manual movement
spindle speeds and feed velocity are hydraulically controlled for easy and safe operation
the drill spindle is driven via multi-disk reversing clutch to avoid excessive load peaks and for easy operation
independent hydraulic clamping of head, column and boom
drill head and column can be clamped/released together or separately; confirmation of operation via push button

R 100 – Radial Drill Press
drilling capacity100 mm
tapping capacity, steelM 70
tapping capacity, cast-ironM 80
drilling depth (max.)500 mm
working area
machine table dimensions2750x1220x300 mm
cube table dimensions1000x800x560 mm
throat570 – 3150 mm
spindle nose-to-table surface distance750 – 2500 mm
drill head travel (horizontal)2580 mm
arm stroke (vertical)1000 mm
speed range(22) 8 – 1000 rpm
spindle mountMK 6 / MT 6
feeds0,06 – 3,2 mm/R
drive capacity
motor rating main drive15 kW
stroke motor3 kW
measures and weights
overall dimensions4780x1630x4720 mm
weight20000 kg
