Compact Band Saw for industrial and workshop applications
frame made of premium cast-iron with dual-column guides – superior rigidity for a special sales price
the torsion-proof saw frame features an infinitely adjustable feed
saw blade speeds of 28 and 45 m/min allow for a wide machining spectrum
automatic saw blade stop and homing of the saw frame at the end of a cut
rigid saw blade guide, adjustable according to workpiece size
including hydraulic workpiece clamping with clamping pressure control
hand-wheel for support roll movement simplifies exact positioning of the workpiece under the saw blade

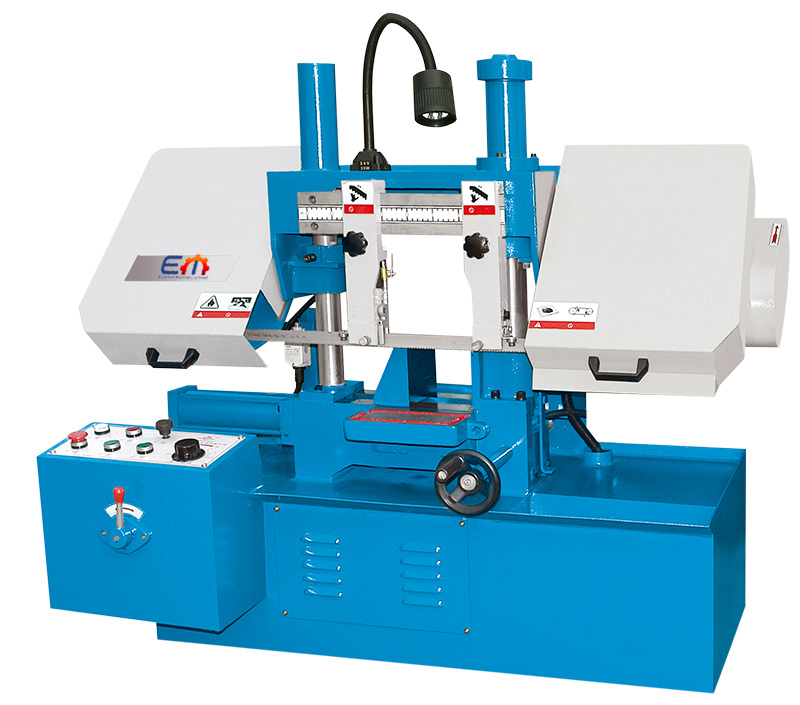

| HB 200 C – Semi-Automatic Horizontal Band Saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 200×200 mm |
| cutting capacity 90° (round) | 200 mm |
| cutting capacity 90° (square) | 200 mm |
| cutting speed | 28, 45 m/min |
| drive capacity | |
| motor rating main drive | 1,8 kW |
| main drive, continuous load | 1,3 kW |
| motor rating hydraulic pump | 0,55 kW |
| motor rating coolant pump | 0,04 kW |
| measures and weights | |
| belt dimensions | 2800x27x0,9 mm |
| overall dimensions | 1400x900x1000 mm |
| weight | 350 kg |
,
