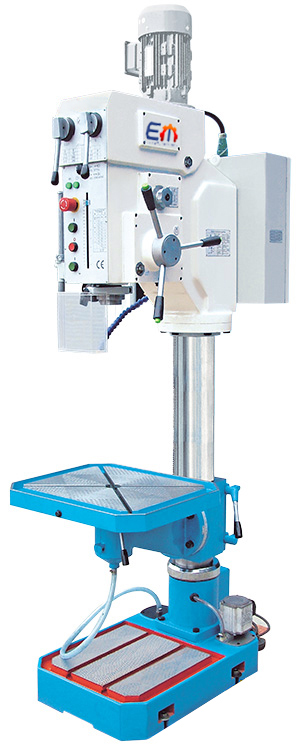

Universal Drill Press for Workshop Applications
heavy cast-iron construction with thick-walled column
tapping feature
automatic drill feeds controlled by an electromagnetic clutch
including coolant system and work lamp
table rotates and swivels ±45°
| SSB 40 Xn – Column Drill Press | |
| drilling capacity | 40 mm |
| tapping capacity, steel | M 24 |
| working area | |
| table set up area | 570×480 mm |
| quill stroke | 190 mm |
| table stroke | 460 mm |
| table swivel range (max.) | ± 45° |
| spindle nose-to-table distance (max.) | 600 mm |
| spindle nose-to-foot distance | 1195 mm |
| throat | 360 mm |
| column diameter | 140 mm |
| headstock | |
| spindle speed | (9) 72 – 2150 rpm |
| spindle mount | MK 4 / MT 4 |
| feed | |
| quill feeds | 0,12; 0,24; 0,42 / 3 mm/R |
| drive capacity | |
| motor rating main drive | 2 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 965x580x2275 mm |
| weight | 550 kg |
,
