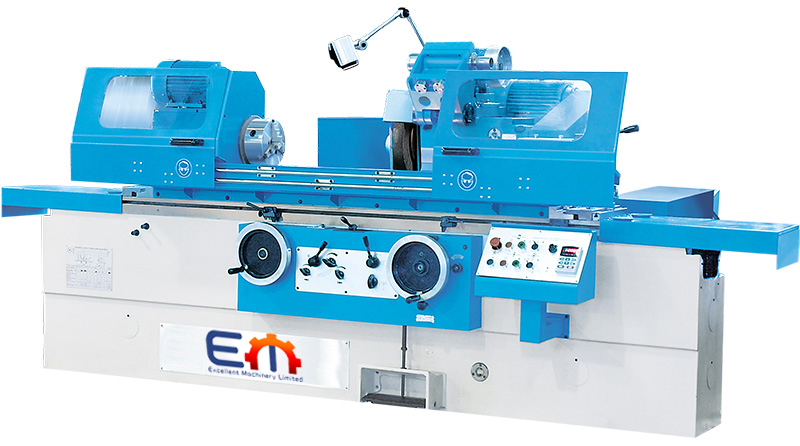

universal cylindrical grinding machine

universal cylindrical grinding machine

universal cylindrical grinding machine

Model

MW1420 Series

M1432B Series

M1450 Series

Description

Unit







General capacity

























Distance between centers

mm

500

750

1000

1500

2000

1500

2000

3000

Center height

mm

135

180

270

Dia. Ground(O.D)

mm

5-200

8~320

25-500

Dia. Ground(I.D)

mm

25-100

30~100

30-200

Max. length ground(O.D)

mm

500            750

1000

1500

2000

1500

2000

3000

Max. length ground(I.D)

mm

125

125

320

Max. weight of work piece

Kg

100

150

1000

Work head















Swiveling angle

°

+90°

+90°

+90°

Center taper(MT)

(MT)

4

4

6

Spindle speed

r/min

50HZ:25-380  Stepless

50HZ:25~220  Stepless

50HZ:20-224

Wheel head















Wheel spindle speed

r/min

1670

1670

1330/665

Wheel head rapid travel

mm

50

50

100

Max. travel

mm

205

246

370

Swiveling angle

°

±30°

±30°

-30°

hand wheel feed per rev.

mm

rough: 2  fine:0.5

 rough: 2  fine:0.5

rough:4  fine0.5

Hand wheel feed per gra.

mm

rough:0.01  fine:0.0025

rough:0.01 fine:0.0025

rough:0.02 fine:0.0025

Max. dimension of wheel
(OD×W×ID)

mm

400×50×203

400×50×203

500×75×305

Wheel peripheral velocity

m/s

35

35

35/17.5

Internal grinding device















Spindle speed

r/min

10000/15000

10000/15000

7000

Dimension of wheel

mm

40×50×203

max50×25×13  min17×20×6

max175×32×32  min 30×25×10

Table















Hand feed per. rev

mm

6

6

5

Max. swiveling angle of table

clockwise

°








anticlockwise

°









Longitudinal traverse speed of table

m/min

0.1-4

0.1~4

0.1-3

Tailstock















Center tape(MT)

(MT)

4

4

6

Quill travel

mm

30

30

70

Motor















Wheel head motor power

Kw

4

5.5

5/7.5

Internal grinding

Kw

1.1

1.1

1.5

Work head motor power

Kw

0.75

1.5

4

Machine















Gross weight

t

4.1

4.3

5.3

6.1

7.9

11.2

13

17.4

Packing dimension

cm

235×203×205

275×203×205

322×200×205

438×422×205

540×200×205

540×228×210

610×228×210

810×228×210

M14 series cylindrical surface grinder is suitable for grinding outer/inner surface of cylinder and taper.

The longitudinal movement of the workable is driven by hydraulic or by handwheel,the worktable can rotate to a certain degree so as to be suitable for grinding taper.

The wheel head cross feed is driven by hydraulic,which realizes automatic periodical feed and rapid feed.it can also do rough and fine feed through handwheel.

M14 series universal cylindrical grinder has internal grinding apparatus,internal grinding spindle is supported by precise roll bearing.

The work head spindle,wheel head spindle,internal grinding spindle,coolant pump,hydrodynamic and hydrostatic oil pump are driven by separate motors

The spindle of M1450 series is supported by hydrostatic and hydrostatic lubrication,its movement on low speed is smooth.

The spindle of M1450 series is supported by hydrostatic and hydrodynamic bearing of high rigidity,it makes the spindle have high rotary accuracy and perfect rigidity.

The wheel head of the universal type(M1450) adopts inverter motor to realize stepless speed changing.the wheel head spindle of the universal type ( M1450) adopts sliding bearing structure.the clearance of the front bearing can be adjusted to make it suitable for the grinding use center or chuck the work head of the universal type can be rotate to any position within its counterclock direction 90 degree so it can be suitable for grinding inner or outer surface of taper.

Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance,all control lever are centralized in panel make operating easy.

The wheel dresser can be assembled on the worktable surface or on the tailstock.

There have many different distance between the centers for choice.



Standard accessories:

(1) complete set of electrical equipment  (2) coolant equipment   (3) wheel periphery dresser  (4) wheel flange     (5) wheel balancing arbor       (6) leveling wedge

(7) open type steady rest   (8) carbide tipped center



Optional accessories:

(1) wheel balancing stand  (2) magnetic separator   (3) center grinding attachment

(4) close type steady rest   (5) end wheel dresser   (6) radius wheel dresser

,
