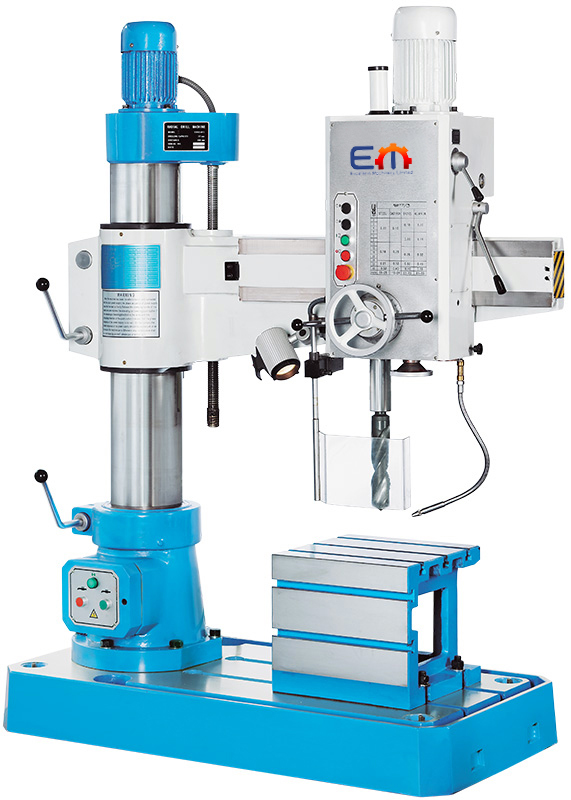

Rigid Radial Drill Press with an unbeatable price/performance ratio
for drilling, reaming and tapping
machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
precision-ground gears for quiet operation
practical layout of electrical and mechanical controls at the headstock for easy operation
motorized arm height adjustment
the spindle is made of high-quality hardened steel of consistent accuracy
mechanical clamping for head, column and arm
| R 32 Basic – Radial Drill Press | |
| drilling capacity | 32 mm |
| working area | |
| machine table dimensions | 1370x700x160 mm |
| cube table dimensions | 400x400x350 mm |
| quill stroke | 240 mm |
| throat | 320 – 820 mm |
| spindle nose-to-table surface distance | 320 – 860 mm |
| column diameter | 200 mm |
| headstock | |
| speed range | (6) 75 – 1220 rpm |
| spindle mount | MK 4 / MT 4 |
| feed | |
| feeds | (3) 0,1 – 0,25 mm/R |
| drive capacity | |
| motor rating main drive | 1,5 kW |
| measures and weights | |
| overall dimensions | 1407x720x1885 mm |
| weight | 1425 kg |
,
