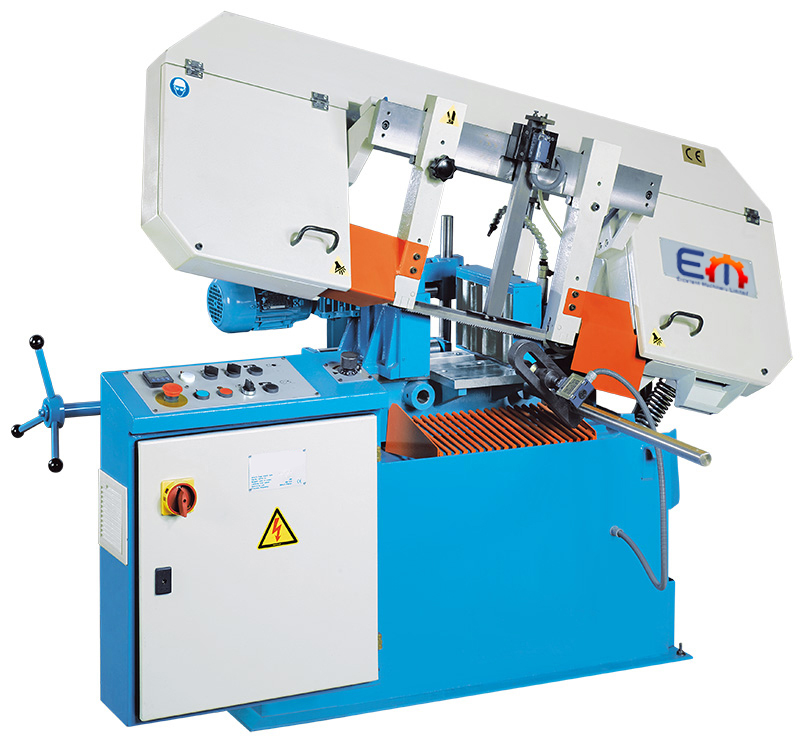

Fully automated for continuous operation – proven reliability, convincing Price and Performance
saw frame and machine bed are made of premium cast-iron for torsion-free performance even under maximum loads
new helical gears ensure above-average service life and low maintenance
infinitely variable saw frame feed
large size hydraulic cylinder for constant quiet operation
automatic adjustment of cutting heigth
a bundle vise is provided for cutting entire material packs to length
| Fully Automated Band Saw | ABS 280 B | ABS 320 B |
| cutting capacities | ||
| cutting capacity 90° (flat) | 250×280 mm | 320×200 mm |
| cutting capacity 90° (round) | 280 mm | 320 mm |
| cutting capacity 90° (square) | 270 mm | 300 mm |
| stop length | 500 mm | 500 mm |
| cutting speed | 20 – 100 m/min | 20 – 100 m/min |
| working area | ||
| roller guide length | 1200 mm | 1200 mm |
| feed rollers | 4 Pieces | 6 Pieces |
| drive capacity | ||
| motor rating main drive | 1,5 kW | 400 V |
| supply voltage | 400 V | 1,5 kW |
| motor rating hydraulic pump | 0,37 kW | 0,37 kW |
| motor rating feed | 0,25 kW | 0,25 kW |
| motor rating coolant pump | 0,12 kW | 0,12 kW |
| measures and weights | ||
| belt dimensions | 27×0,9×3400 mm | 27×0,9×3660 mm |
| overall dimensions | 1800x850x1200 mm | 1850x850x1250 mm |
| weight | 600 kg | 660 kg |
,
