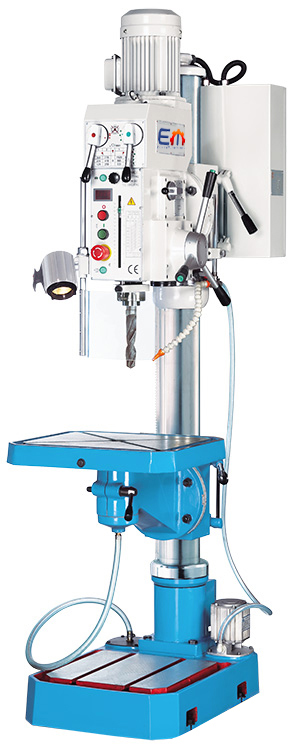

Universal Drill Press for Workshop Applications
heavy cast-iron construction with thick-walled column
tapping feature
automatic drill feeds controlled by an electromagnetic clutch
including coolant system and work lamp
table rotates and swivels ±45°
2-step motor for 12 speed levels
head swivels ± 45°, adjustable height
digital speed (rpm) display
| SSB 32 Xn – Column Drill Press | |
| drilling capacity | 32 mm |
| tapping capacity, steel | M 20 |
| working area | |
| table set up area | 500×420 mm |
| quill stroke | 160 mm |
| table stroke | 415 mm |
| table swivel range (max.) | ± 45° |
| head swivel range | ± 45° |
| vertical head travel | 285 mm |
| spindle axis-to-table surface distance | 630 mm |
| spindle nose-to-foot distance | 1185 mm |
| throat | 320 mm |
| column diameter | 120 mm |
| headstock | |
| spindle speed | (12) 125 – 3030 rpm |
| spindle mount | MK 4 / MT 4 |
| feed | |
| quill feeds | 0,1; 0,2; 0,3 /3 mm/R |
| drive capacity | |
| motor rating main drive | 1,2 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 835x500x1960 mm |
| weight | 540 kg |
,
,
