Feature:
Versatile Use in Workshop Applications
High Power at a Low Price
drilling capacity 35 mm
throat 320 mm
spindle nose-to-foot distance 645 mm
spindle speed (12) 125-3030 rpm
spindle mount MT 4
rigid cast-iron construction
height-adjustable machine head
12 speed steps
rectangular table with T-slots and circumferential coolant groove
automatic quill feed
rpm indicator
coolant system
head swivels ± 45°
tapping feature

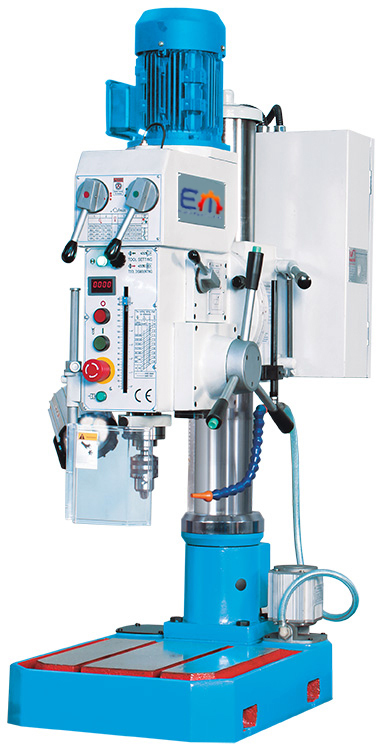

| TSB 35 – Bench-mounted Column Drill Press | |
| drilling capacity | 35 mm |
| tapping capacity, steel | M 22 |
| working area | |
| foot set up area (length x width) | 370×360 mm |
| spindle nose-to-foot distance | 645 mm |
| throat | 320 mm |
| vertical head travel | 515 mm |
| column diameter | 120 mm |
| headstock | |
| spindle speed | (12) 125 – 3030 rpm |
| spindle mount | MK 4 / MT 4 |
| quill stroke | 155 mm |
| feed | |
| quill feeds | (3) 0,1; 0,2; 0,3 mm/R |
| drive capacity | |
| motor rating main drive | 1,2 kW |
| measures and weights | |
| overall dimensions | 810x500x1670 mm |
| weight | 340 kg |
,
