Feature:

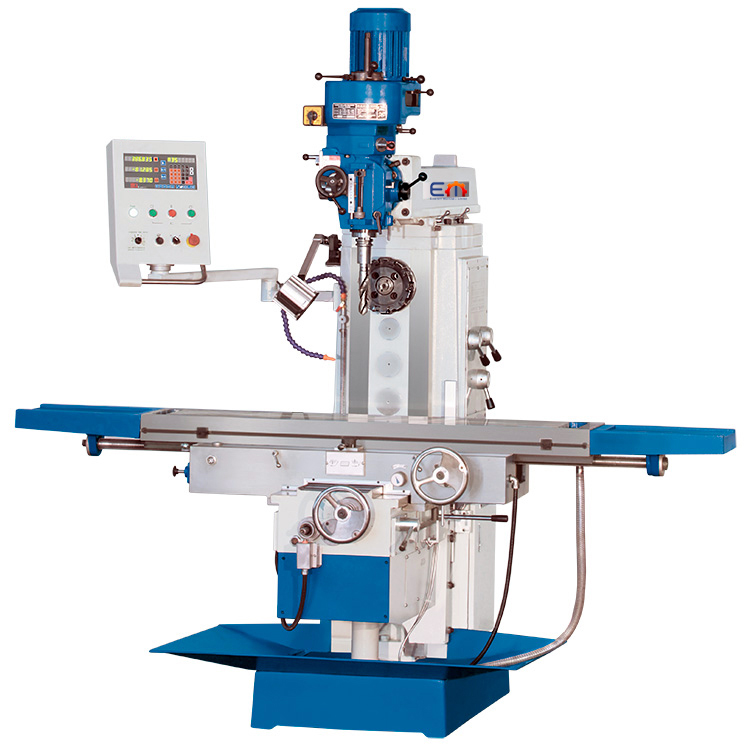

Universal Milling Machine
for Workshop and Production Facilities
Rigid frame design with wide guideways and travels
Hardened guideways ensure wear-resistance and long-term accuracy in all machining operations
Large work table
All gears are hardened and ground for quiet operation and long life
Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free
Automatic quill stroke featuring 3 steps and micrometer depth stop, plus automatic shut-off
Quill feed allows angular bores with tilted cutter head
Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors
High-torque servo-motor drives infinitely variable feeds and raid feeds on 3 axes
| UFM 8 – Universal Milling Machine | |
| working area | |
| travel X-axis | 1300 mm |
| travel Y-axis | 290 mm |
| travel Z-axis | 450 mm |
| top slide travel | 550 mm |
| table dimensions | 1600×320 mm |
| table load capacity (max.) | 300 kg |
| number of T-slots | 3 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 70 mm |
| feed | |
| rapid feed X-axis | 1200 mm/min |
| rapid feed Y-axis | 800 mm/min |
| rapid feed Z-axis | 600 mm/min |
| feed speed X-axis | 30 – 750 mm/min |
| feed speed Y-axis | 20 – 500 mm/min |
| feed speed Z-axis | 15 – 375 mm/min |
| vertical milling head | |
| speed range | (16) 65 – 4660 rpm |
| spindle mount | ISO 40 |
| quill stroke | 127 mm |
| spindle nose-to-table surface distance | 200 – 650 mm |
| horizontal milling head | |
| speed range | (12) 60 – 1800 rpm |
| spindle mount | ISO 50 |
| horizontal spindle-to-table surface distance | 20 – 470 mm |
| spindle axis-to-table surface distance | 245 mm |
| drive capacity | |
| motor rating horizontal spindle | 5,5 kW |
| motor rating vertical spindle | 3,7 kW |
| measures and weights | |
| overall dimensions | 2520x2100x2500 mm |
| weight | 2300 kg |
,
