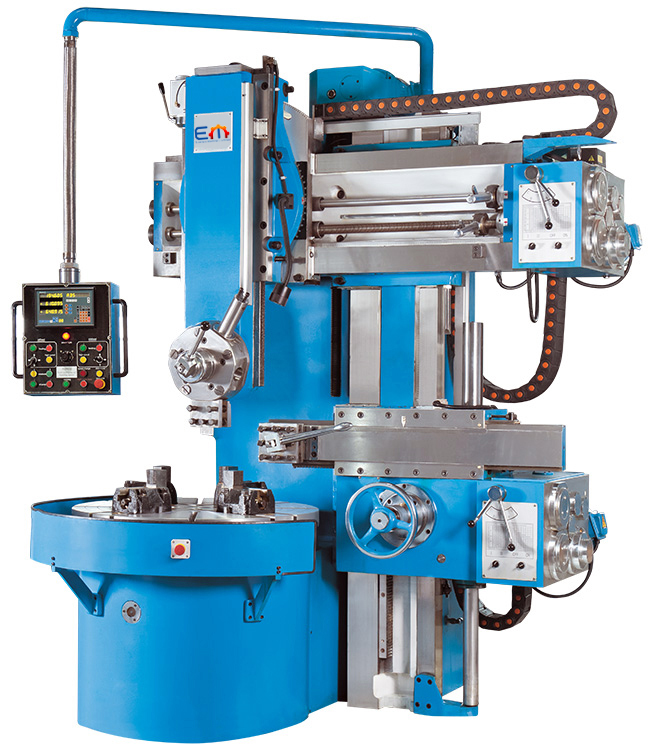

Vertical Lathe

Feature:

Solid and proven technology, power and precision
for the manufacture of heavy parts up to 1.2 tons

optimum tooling and easy access for cranes and forklift trucks
turning diameters up to 800 mm
top support includes a 5-station tool holder, side support with independent feed for perfect inside and outside turning
the massive machine base and a large headstock give the entire structure a solid foundation
the heavy column design and hardened guideways for cross traverse and side support give this machine the proper rigidity to support its power
cross traverse clamping is hydraulic, and the set position will be fixated exactly
the hydraulic system is powerful, reliable and consists of brand name components
all assemblies of the machine frame feature heavy ribbing and have been annealed tension-free in a carefully monitored process
the material and sturdy guide structure give the vertical boom excellent stability and accuracy for large throat widths
the spindle runs in a high-precision two-row roller bearing and is adjustable for high, constant accuracy
reduction gear drive ensures high torque and a speed range of 10 – 315 rpm
automatic central lubrication for easy maintenance and reliable machine function

Vertical Lathe	VDM 800	VDM 1000	VDM 1250	VDM 1600	VDM 2300	VDM 2600
working area
rotating diameter (max.)	800 mm	1000 mm	1250 mm	1600 mm	2300 mm	2600 mm
turning diameter of upper tool holder (max.)	800 mm	1000 mm	1250 mm	1600 mm	2300 mm	2600 mm
turning diameter of side tool holder (max.)	720 mm	900 mm	1000 mm	1400 mm	2000 mm	2300 mm
machining height (max.)	800 mm	800 mm	1000 mm	1000 mm	1350 mm	1500 mm
travel X1 axis, upper support	570 mm	670 mm	700 mm	915 mm	1150 mm	1300 mm
travel Z1 axis , upper support	600 mm	650 mm	650 mm	800 mm	800 mm	1000 mm
travel W-axis, traverse	580 mm	580 mm	650 mm	650 mm	890 mm	1100 mm
travel X2 axis, side support	500 mm	500 mm	600 mm	630 mm	630 mm	730 mm
travel Z2 axis, side support	810 mm	810 mm	900 mm	900 mm	1150 mm	1180 mm
swivel range of upper tool holder	± 30 °	± 30 °	±30 °	±30 °	±30 °	±30 °
workpiece length (max.)	800 mm	800 mm	1000 mm	1000 mm	1350 mm	1500 mm
workpiece weight (max.)	1200 kg	2000 kg	4000 kg	5000 kg	8000 kg	10000 kg
headstock
speed range	(16) 10 – 315 rpm	(16) 8 – 250 rpm	(16) 6,3 – 200 rpm	(16) 5 – 160 rpm	(16) 2,5 – 80 rpm	(16) 1,2 – 40 rpm
headstock torque	10000 Nm	12500 Nm	17500 Nm	25000 Nm	32000 Nm	32000 Nm
rotary table diameter	720 mm	900 mm	1000 mm	1400 mm	2000 mm	2300 mm
feed
feed speed X-axis	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min
feed speed Z-axis	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min	(12) 0,8 – 86 mm/min
feed W-axis	440 mm/min	440 mm/min	440 mm/min	440 mm/min	440 mm/min	440 mm/min
rapid feed of upper support	1800 mm/min	1800 mm/min	1800 mm/min	1800 mm/min	1800 mm/min	1800 mm/min
rapid feed of side support	1800 mm/min	1800 mm/min	1800 mm/min	1800 mm/min	1800 mm/min	1800 mm/min
tool holder	30×40 mm	30×40 mm	30×40 mm	30×40 mm	30×40 mm	30×40 mm
tool weight max.	50 kg	50 kg	50 kg	50 kg	50 kg	50 kg
drive capacity
motor rating main drive	15 kW	15 kW	22 kW	22 kW	30 kW	37 kW
motor rating X-axis	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp
motor rating Z-axis	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp	1,3/1,8 kW / 1,7/2,4 Hp
measures and weights
overall dimensions	2400x2100x2760 mm	2400x2200x2760 mm	2360x2270x2800 mm	2830x2670x2810 mm	3210x2850x3300 mm	3300x4000x3500 mm
weight	6500 kg	8000 kg	9000 kg	12500 kg	18000 kg	22000 kg
