Band Saws – an economic alternative to frame and circular saws
saw frame swivels – allowing angular cuts from 90° to -45°
coolant system is included
thin saw blade for reduced material removal
long life – the saw blade is used over its entire length
exact cuts – rigid construction prevents belt track deviations
quiet, low-vibration operation
a hydraulic cylinder controls the support pressure infinitely from 0 to maximum pressure

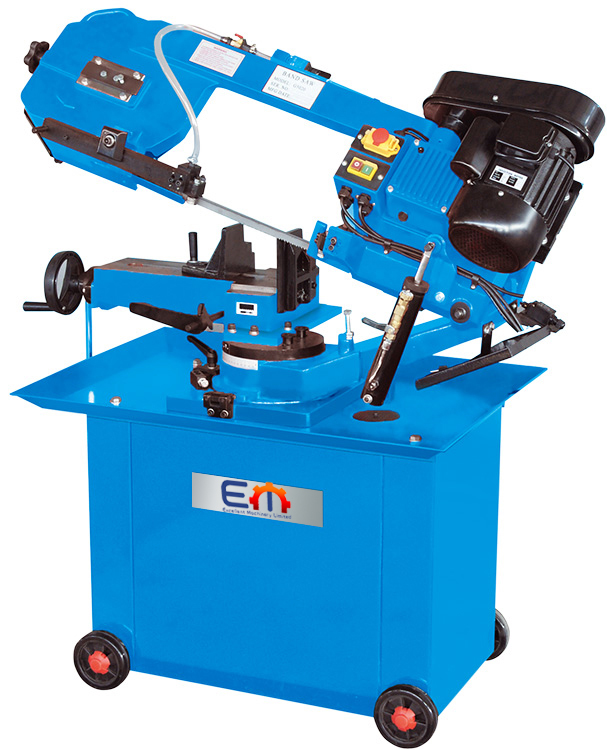

| B 200 S – Miter Band Saw | |
| cutting capacities | |
| cutting capacity 90° (round) | 205 mm |
| cutting capacity 90° (square) | 205 mm |
| cutting capacity 90° (flat) | 205×215 mm |
| cutting capacity 45° (round) L | 135 mm |
| cutting capacity 45° (square) L | 115 mm |
| cutting capacity 45° (flat) L | 205×115 mm |
| belt speed | 24 / 41 / 61 / 82 m/min |
| drive capacity | |
| motor rating main drive | 1,1 kW |
| supply voltage | 400 V |
| measures and weights | |
| belt dimensions | 2360x20x0,9 mm |
| overall dimensions | 1230x650x1320 mm |
| weight | 190 kg |
,
